Super Erecta

Super Erecta^TM Shelving System

SUPER ADJUSTABLE SUPER ERECTA^TM — SETTING THE STANDARD. The easiest to adjust wire shelving system ever.

Super Adjustable Super Erecta shelving is a system that allows for quick and easy adjustment. It is the latest generation of Metros popular Super Erecta® line. Incorporating innovative changes to Super Erecta, Super Adjustable Super Erecta provides an option in wire shelving that has never been available previously—quick and easy adjustability. Shelves can be readjusted at precise 1" (25mm) increments along the length of the numbered posts.

Each shelf corner is equipped with a quick release lever that remains securely in place until an adjustment is required. To reposition the shelf, the levers are pulled, wedges are repositioned and the shelf easily slides to a new height. Super Adjustable Super Erecta shelving is available in chrome, Brite, and Metroseal II finishes.

Just lift the release at each corner
and adjust at 1" increments in seconds.

SUPER ERECTA SHELVING SYSTEM — THE GENUINE SOLUTION. The proven means to put space to work.

A storage system that defines the extent of space, Super Erecta's revolutionary concept was fresh and innovative from its start —over 25 years ago. It has continued to evolve, with nearly 100 highly specialized accessories, aimed at meeting the diversity of today's challenges.

Metro's split sleeve shelf connector is a timeless
design that allows shelf adjustment in minutes.

Shelves can be readjusted at precise 1" (25mm) increments along the length of the numbered posts. Super Erecta shelving is available in chrome, stainless steel, Brite, and Metroseal II in addition to a complete palette of designer colors, and textures. Shelf styles include wire, solid, embossed and louvered/embossed. A full choice of caster types are available, as is a selection of shelf and post sizes.

SITESELECT POSTS — A quick and accurate system to determine desired shelf height.

A new patent-pending design integrated to all posts for Super Erecta and Super Adjustable Super Erecta provides a visual guide for positioning and adjusting shelves. Site Select saves considerable time during assembly and adjustment steps.

The approach of the system is a triple-groove impression located every 8" (200mm) on posts. The system was established to provide an easy and quick method to determine shelf height during assembly and adjustment. Simply locate the triple ring then count up or down the desired number of slots for a quick and accurate placement of shelves.

Super Erecta posts can he fitted with flanged
foot plates for a wide base, adjustable leveling feet
(standard), or any of a wide range of poly and
rubber casters.

* PLEASE CALL FOR CURRENT PRICES:

(301) 231-7272

(800) 827-7880

WIRE SHELVES — 10.01 10.10a
PACKAGING: Super Erecta Wire Shelves are packaged 4 to a carton except 60" (1525mm) and 72” (1825mm) lengths and all Super Wide Shelves, which are packaged 2 to a carton. Plastic split sleeves are included in each carton.

Width/Length		Approx. Pkd. Wt.		Cat. No. Super Erecta Brite	Price Each	Cat. No. Chrome	Price Each	Cat. No. Metroseal II	Price Each	Cat. No. Stainless	Price Each
(in.)	(mm)	(lbs.)	(kg)	Cat. No. Super Erecta Brite	Price Each	Cat. No. Chrome	Price Each	Cat. No. Metroseal II	Price Each	Cat. No. Stainless	Price Each
18x18	455x455	6	2.7	N / A	N/A	1818NC	*	N / A	N / A	N / A	N /A
18x24	455x610	7	3.2	1824BR	*	1824NC	*	1824NK2	*	1824NS	*
18x30	455x760	8	3.6	1830BR	*	1830NC	*	1830NK2	*	1830NS	*
18x36	455x910	9½	4.3	1836BR	*	1836NC	*	1836NK2	*	1836NS	*
18x42	455x1060	11	5	1842BR	*	1842NC	*	1842NK2	*	1842NS	*
18x48	455x1220	12	5.4	1848BR	*	1848NC	*	1848NK2	*	1848NS	*
18x54	455x 1370	141	6.6	1854BR	*	1854NC	*	1854NK2	*	1854NS	*
18x60	455x1525	17	7.7	1860BR	*	1860NC	*	1860NK2	*	1860NS	*
18x72	455x1825	20	9.1	1872BR	*	1872NC	*	1872NK2	*	1872NS	*
21x24	530x610	8	3.6	2124BR	*	2124NC	*	2124NK2	*	2124NS	*
21x30	530x760	9	4.1	2130BR	*	2130NC	*	2130NK2	*	2130NS	*
21x36	530x910	11	5	2136BR	*	2136NC	*	2136NK2	*	2136NS	*
21x42	530x1060	12	5.4	2142BR	*	2142NC	*	2142NK2	*	2142NS	*
21x48	530x1220	14	6.4	2148BR	*	2148NC	*	2148NK2	*	2148NS	*
21x54	530x1370	16	7.3	2154BR	*	2154NC	*	2154NK2	*	2154NS	*
21x60	530x1525	18	8.2	2160BR	*	2160NC	*	2160NK2	*	2160NS	*
21x72	530x1825	24	10.9	2172BR	*	2172NC	*	2172NK2	*	2172NS	*
24x24	610x610	9	4.1	2424BR	*	2424NC	*	2424NK2	*	2424NS	*
24x30	610x760	11	5	2430BR	*	2430NC	*	2430NK2	*	2430NS	*
24x36	610x910	13	5.9	2436BR	*	2436NC	*	2436NK2	*	2436NS	*
24x42	610x1060	15	6.8	2442BR	*	2442NC	*	2442NK2	*	2442NS	*
24x48	610x1220	16	7.3	2448BR	*	2448NC	*	2448NK2	*	2448NS	*
24x54	610x1370	19	8.6	2454BR	*	2454NC	*	2454NK2	*	2454NS	*
24x60	610x1525	21	9.5	2460BR	*	2460NC	*	2460NK2	*	2460NS	*
24x72	610x1825	26	11.8	2472BR	*	2472NC	*	2472NK2	*	2472NS	*
NOTE: With 14" (355mm) shelving, foot plates must be used on freestanding units; on mobile units, maximum post height is 54" (1370mm). It is not recommended to use 14" (355mm) shelving with posts higher than 74" (1880mm).
NOTE: The actual length of the shelves is 1/8" (3.2mm) shorter than the nominal dimension shown.
NOTE: The Metroseal II is not cart-washable. NOTE: For availability of Super Erecta Shelving in 14", 30", and 36" (355, 760, and 910mm), contact your Metro Representative.

Super Adjustable Super Erecta shelving unit

SUPER ADJUSTABLE WIRE SHELVES — 10.01a

Width/Length		Approx. Pkd. Wt.		Cat. No. Super Erecta Brite	Price Each	Cat. No. Chrome	Price Each	Cat No. Metroseal II	Price Each	Cat. No. Stainless Steel	Price Each
(in.)	(mm)	(lbs.)	(kg)	Cat. No. Super Erecta Brite	Price Each	Cat. No. Chrome	Price Each	Cat No. Metroseal II	Price Each	Cat. No. Stainless Steel	Price Each
14x24	355x610	6	2.7	A1424BR	*	A1424NC	*	A1424NK2	*	A1424NS	*
14x30	355x760	7	3.2	A1430BR	*	A1430NC	*	A1430NK2	*	A1430NS	*
14x36	355x910	8	3.6	A1436BR	*	A1436NC	*	A1436NK2	*	A1436NS	*
14x42	355x1060	9 1/2	4.3	A1442BR	*	A1442NC	*	A1442NK2	*	A1442NS	*
14x48	355x1220	10 1/2	4.7	A1448BR	*	A1448NC	*	A1448NK2	*	A1448NS	*
14x60	355x1525	14	6.3	A1460BR	*	A1460NC	*	A1460NK2	*	A1460NS	*
14x72	355x1825	17	7.7	A1472BR	*	A1472NC	*	A1472NK2	*	A1472NS	*
18x24	455x610	7	3.2	A1824BR	*	A1824NC	*	A1824NK2	*	A1824NS	*
18x30	455x760	8	3.6	A1830BR	*	A1830NC	*	A1830NK2	*	A1830NS	*
18x36	455x910	9½	4.3	A1836BR	*	A1836NC	*	A1836NK2	*	A1836NS	*
18x42	455x1060	11	5	A1842BR	*	A1842NC	*	A1842NK2	*	A1842NS	*
18x48	455x1220	12	5.4	A1848BR	*	A1848NC	*	A1848NK2	*	A1848NS	*
18x54	455x1370	14½	6.6	A1854BR	*	A1854NC	*	A1854NKZ	*	A1854NS	*
18x60	455x1525	17	7.7	A1860BR	*	A1860NC	*	A1860NK2	*	A1860NS	*
18x72	455x1825	20	9.1	A1872BR	*	A1872NC	*	A1872NK2	*	A1872NS	*
21x24	530x610	8	3.6	A2124BR	*	A2124NC	*	A2124NK2	*	A2124NS	*
21x30	530x760	9	4.1	A2130BR	*	A2130NC	*	A2130NK2	*	A2130NS	*
21x36	330x910	11	5	A2136BR	*	A2136NC	*	A2136NK2	*	A2136NS	*
21x42	530x1060	12	5.4	A2142BR	*	A2142NC	*	A2142NK2	*	A2142NS	*
21x48	830x1220	14	6.4	A2148BR	*	A2148NC	*	A2148NK2	*	A2148NS	*
21x54	530x1370	16	7.3	A2154BR	*	A2154NC	*	A2154NK2	*	A2154NS	*
21x60	530x1525	18	8.2	A2160BR	*	A2160NC	*	A2160NK2	*	A2160NS	*
21x72	530x1825	24	10.9	A2172BR	*	A2172NC	*	A2172NK2	*	A2172NS	*
24x24	610x610	9	4.1	A2424BR	*	A2424NC	*	A2424NK2	*	A2424NS	*
24x30	610x760	11	5	A2430BR	*	A2430NC	*	A2430NK2	*	A2430NS	*
24x36	610x910	13	5.9	A2436BR	*	A2436NC	*	A2436NK2	*	A2436NS	*
24x42	610x1060	15	6.8	A2442BR	*	A2442NC	*	A2442NK2	*	A2442NS	*
24x48	610x1220	16	7.3	A2448BR	*	A2448NC	*	A2448NK2	*	A2448NS	*
24x54	610x1370	18	8.6	A2454BR	*	A2454NC	*	A2454NK2	*	A2454NS	*
24x60	610x1525	21	9.5	A2460BR	*	A2460NC	*	A2460NK2	*	A2460NS	*
24x72	610x1825	26	11.8	A2472BR	*	A2472NC	*	A2472NK2	*	A2472NS	*

SUPER WIDE SHELVING — 10.02

Width/Length		Approx. Pkd. Wt.		Cat. No. Chrome	Price Each	Cat. No. Metroseal II	Price Each	Cat. No. Stainless	Price Each
(in.)	(mm)	(lbs.)	(kg)	Cat. No. Chrome	Price Each	Cat. No. Metroseal II	Price Each	Cat. No. Stainless	Price Each
30x36	760x910	15	6.8	A3036NC	*	A3036NK2	*	A3036NS	*
30x48	760x1220	21	9.5	A3048NC	*	A3048NK2	*	A3048NS	*
30x60	760x1525	26½	11.8	A3060NC	*	A3060NK2	*	A3060NS	*
30x72	760x1825	31	14	A3072NC	*	A3072NK2	*	A3072NS	*
36x36	910x910	18	8.2	A3636NC	*	A3636NK2	*	A3636NS	*
36x48	910x1220	23	111.4	A3648NC	*	A3648NK2	*	A3648NS	*
36x60	910x1525	29	13.1	A3660NC	*	A3660NK2	*	A3660NS	*
36x72	910x1825	34½	15.4	A3672NC	*	A3672NK2	*	A3672NS	*

SITESELECT POSTS — 10.01a
For Super Erecta and Super Adjustable Shelves. Posts are fitted with adjustable leveling bolts to compensate for uneven surfaces.

Height ⁺⁺

Approx. Pkd. Wt.

Cat. No.
Chrome

Cat. No. Black

Cat. No. White

Cat No. Smoked Glass

Price Each

Cat. No.
Designer Colors

Price Each

Cat. No.
Metroseal II

Price Each

Cat. No.
Stainless

Price Each

(in.)

(mm)

(lbs.)

(kg)

7 5/8

195

0.3

7PBL

7P-DSG

7P-D

14½

370

0.5

13P

13PBL

13PW

13P-DSG

13P-D

13PK2

13PS

28½

724

1¾

0.75

27P

N / A

27PS

34½

875

0.9

33P

33PBL

33PW

33P-DSG

33P-D

33PK2

33PS

54 9/16

1385

1.4

54P

54PBL

54PW

54P-DSG

54P-D

54PK2

54PS

62 9/16

1590

3½

1.6

63P

63PBL

63PW

63P-DSG

63P-D

63PK2

63PS

74 5/8

1895

1.8

74P

74PBL

74PW

74P-DSG

74P-D

74PK2

74PS

86 5/8

2200

2.3

86P

86PBL

86PW

86P-DSG

86P-D

86PK2

86PS

96½

2451

5½

2.5

96P ^**

⁺⁺Height includes leveling bolt and cap.

^**96P should not be used on units less than 24" (610mm) deep. Consult Metro Engineering for alternate recommendations.

^***Post lengths to be specified as cut to a round number, i.e.:74P cut to 69"...This will result in an overall post height with adjustment of 69 3/8" to 69 7/8".

Note: Special length posts are available.

SiteSelect Posts are grooved at 1" (25mm) increments and numbered at 2” (50mm) increments. Posts are triple-grooved every 8” (203mm) for easy identification.

* PLEASE CALL FOR CURRENT PRICES:

(301) 231-7272

(800) 827-7880

SHELVING STARTER & ADD-ON UNITS Develop a custom storage installation by combining individual units in a variety of combinations utilizing “5” hooks. Starter Units consist of four posts and indicated number of standard Super Erecta shelves. Add-On Units consist of two posts, indicated number of shelves and two “S” Hooks for each shelf.

SHELVING STARTER & ADD-ON UNITS — EASY ORDER GUIDE

4 Shelves, 63" (1600mm) Posts (63P)		Chrome-Plated
		18" (455mm) Wide		21" (530mm) Wide		24" (610mm) Wide
		Starter	Add-OA	Starter	Add-OA	Starter	Add-OA
24"	Cat. No.	A316C	AA316C	A416C	AA416C	A516C	AA516C
(610mm)	Price Each	*	*	*	*	*	*
Long	Wt. lbs. (kg)	42(19)	35(16)	46(21)	39(18)	50(23)	43(20)
30"	Cat. No.	A326C	AA326C	A426C	AA426C	A526C	AA526C
(760mm)	Price Each	*	*	*	*	*	*
Long	Wt. lbs. (kg)	47(21)	40(18)	52(24)	45(20)	57(26)	50(23)
36"	Cat. No.	A336C	AA336C	A436C	AA436C	A536C	AA536C
(910mm)	Price Each	*	*	*	*	*	*
Long	Wt. lbs. (kg)	53(24)	46(21)	59(27)	52(24)	65(30)	58(26)
42"	Cat. No.	A346C	AA346C	A446C	AA446C	A546C	AA546C
(1060mm)	Price Each	*	*	*	*	*	*
Long	Wt. lbs. (kg)	57(26)	50(23)	65(29)	58(26)	72(33)	65(29)
48"	Cat. No.	A356C	AA356C	A456C	AA456C	A556C	AA556C
(1220mm)	Price Each	*	*	*	*	*	*
Long	Wt. lbs. (kg)	63(29)	56(25)	71(32)	64(29)	79(36)	72(33)
60"	Cat. No.	A366C	AA366C	A466C	AA466C	A566C	AA566C
(1525mm)	Price Each	*	*	*	*	*	*
Long	Wt. lbs. (kg)	82(31)	75(34)	88(40)	81(37)	98(44)	91(41)
72"	Cat. No.	A376C	AA376C	A476C	AA476C	A576C	AA576C
(1825mm)	Price Each	*	*	*	*	*	*
Long	Wt. lbs. (kg)	94(43)	87(39)	98(44)	92(42)	120(54)	113(51)

5 Shelves, 74" (1880mm) Posts (74P)		Chrome-Plated
		18" (455mm) Wide		21" (530mm) Wide		24" (610mm) Wide
		Starter	Add-OA	Starter	Add-OA	Starter	Add-OA
24"	Cat. No.	5A317C	5AA317C	5A417C	5AA417C	5A517C	5AA517C
(610mm)	Price Each	*	*	*	*	*	*
Long	Wt. lbs. (kg)	51(23)	43(20)	57(26)	48(22)	62(28)	53(24)
30"	Cat. No.	5A327C	5AA327C	5A427C	5AA427C	5A527C	5AA527C
(760mm)	Price Each	*	*	*	*	*	*
Long	Wt. lbs. (kg)	58(26)	50(23)	64(29)	56(25)	71(32)	62(28)
36"	Cat. No.	5A337C	5AA337C	5A437C	5AA437C	5A537C	5AA537C
(910mm)	Price Each	*	*	*	*	*	*
Long	Wt. lbs. (kg)	65(29)	57(26)	73(33)	65(29)	81(37)	73(33)
42"	Cat. No.	5A347C	5AA347C	5A447C	5AA447C	5A547C	5AA547C
(1060mm)	Price Each	*	*	*	*	*	*
Long	Wt. lbs. (kg)	70(32)	62(28)	81(37)	73(33)	89(40)	81(37)
48"	Cat. No.	5A357C	5AA357C	5A457C	5AA457C	5A557C	5AA557C
(1220mm)	Price Each	*	*	*	*	*	*
Long	Wt. lbs. (kg)	78(35)	70(32)	88(40)	80(36)	98(44)	90(41)
60"	Cat. No.	5A367C	5AA367C	5A467C	5AA467C	5A567C	5AA567C
(1525mm)	Price Each	*	*	*	*	*	*
Long	Wt. lbs. (kg)	102(46)	93(42)	109(49)	101(46)	122(55)	113(51)
72"	Cat. No.	5A377C	5AA377C	5A477C	5AA477C	5A577C	5AA577C
(1825mm)	Price Each	*	*	*	*	*	*
Long	Wt. lbs. (kg)	117(53)	108(49)	122(55)	113(51)	149(68)	141(64)

4 Shelves, 63” (1600mm) Posts (63P)		Super Erecta Brite
		18" (455mm) Wide		21" (530mm) Wide		24" (610mm) Wide
		Starter	Add-OA	Starter	Add-OA	Starter	Add-OA
24" (610mm)	Cat. No.	A316BR	AA316BR	A416BR	AA416BR	A516BR	AA516BR
	Price Each	*	*	*	*	*	*
Long	Wt. lbs. (kg)	42(19)	35(16)	46(21)	39(18)	50(23)	43(20)
30" (760mm)	Cat. No.	A326BR	AA326BR	A426BR	AA426BR	A526BR	AA526BR
	Price Each	*	*	*	*	*	*
Long	Wt. lbs. (kg)	47(20)	40(18)	52(24)	45(20)	57(26)	50(23)
36" (910mm)	Cat. No.	A336BR	AA336BR	A436BR	AA436BR	A536BR	AA536BR
	Price Each	*	*	*	*	*	*
Long	Wt. lbs. (kg)	53(24)	46(21)	59(27)	52(24)	65(30)	58(26)
42" (1060mm)	Cat. No.	A346BR	AA346BR	A446BR	AA446BR	A546BR	AA546BR
	Price Each	*	*	*	*	*	*
Long	Wt. lbs. (kg)	57(26)	50(23)	65(29)	58(26)	72(33)	65(29)
48" (1220mm)	Cat. No.	A356BR	AA356BR	A456BR	AA456BR	A556BR	AA556BR
	Price Each	*	*	*	*	*	*
Long	Wt. lbs. (kg)	63(29)	56(25)	71(32)	64(29)	79(36)	72(33)
60" (1525mm)	Cat. No.	A366BR	AA366BR	A466BR	AA466BR	A566BR	AA566BR
	Price Each	*	*	*	*	*	*
Long	Wt. lbs. (kg)	82(31)	75(34)	88(40)	81(37)	98(44)	91(41)
72" (1825mm)	Cat. No.	A376BR	AA376BR	A476BR	AA476BR	A576BR	AA576BR
	Price Each	*	*	*	*	*	*
Long	Wt. lbs. (kg)	94(43)	87(39)	98(44)	92(42)	120(54)	113(51)

5 Shelves, 74" (1880mm) Posts (74P)		Super Erecta Brite
		18" (455mm) Wide		21" (530mm) Wide		24" (610mm) Wide
		Starter	Add-OA	Starter	Add-OA	Starter	Add-OA
24"	Cat. No.	5A317BR	5AA317BR	5A417BR	5AA417BR	5A517BR	5AA517BR
(610mm)	Price Each	*	*	*	*	*	*
Long	Wt. lbs. (kg)	51(23)	43(20)	57(26)	48(22)	62(28)	53(24)
30"	Cat. No.	5A327BR	5AA327BR	5A427BR	5AA427BR	5A527BR	5AA527BR
(760mm)	Price Each	*	*	*	*	*	*
Long	Wt. lbs. (kg)	58(26)	50(23)	64(29)	56(25)	71(32)	62(28)
36"	Cat. No.	5A337BR	5AA337BR	5A437BR	5AA437BR	5A537BR	5AA537BR
(910mm)	Price Each	*	*	*	*	*	*
Long	Wt. lbs. (kg)	65(29)	57(26)	73(33)	65(29)	81(37)	73(33)
42"	Cat. No.	5A347BR	SAA347BR	5A447BR	5AA447BR	5A547BR	5AA547BR
(1060mm)	Price Each	*	*	*	*	*	*
Long	Wt. lbs. (kg)	70(32)	62(28)	81(37)	73(33)	89(40)	81(37)
48"	Cat. No.	5A357BR	5AA357BR	5A457BR	5AA457BR	5A557BR	5AA557BR
(1220mm)	Price Each	*	*	*	*	*	*
Long	Wt. lbs. (kg)	78(35)	70(32)	88(40)	80(36)	98(44)	90(41)
60"	Cat. No.	5A367BR	5AA367BR	5A467BR	5AA467BR	5A567BR	5AA567BR
(1525mm)	Price Each	*	*	*	*	*	*
Long	Wt. lbs. (kg)	102(46)	93(42)	109(49)	101(46)	122(55)	113(51)
72"	Cat. No.	5A377BR	5AA377BR	5A477BR	5AA477BR	5A577BR	5AA577BR
(1825mm)	Price Each	*	*	*	*	*	*
Long	Wt. lbs. (kg)	117(53)	108(49)	122(55)	113(51)	149(68)	141(64)

4 Shelves, 63” (1600mm) Posts (63P)		Metroseal II^TM
		18" (455mm) Wide		21" (530mm) Wide		24" (610mm) Wide
		Starter	Add-OA	Starter	Add-OA	Starter	Add-OA
24"	Cat. No.	A316K2	AA316K2	A416K2	AA416K2	A516K2	AA516K2
(610mm)	Price Each	*	*	*	*	*	*
Long	Wt. lbs. (kg)	42(19)	35(16)	46(21)	39(18)	50(23)	43(20)
30"	Cat. No.	A326K2	AA326K2	A426K2	AA426K2	A526K2	AA526K2
(760mm)	Price Each	*	*	*	*	*	*
Long	Wt. lbs. (kg)	47(21)	40(18)	52(24)	45(20)	57(26)	50(23)
36"	Cat. No.	A336K2	AA336K2	A436K2	AA436K2	A536K2	AA536K2
(760mm)	Price Each	*	*	*	*	*	*
Long	Wt. lbs. (kg)	53(24)	46(21)	59(27)	52(24)	65(30)	58(26)
42"	Cat. No.	A346K2	AA346K2	A446K2	AA446K2	A546K2	AA546K2
(1060mm)	Price Each	*	*	*	*	*	*
Long	Wt. lbs. (kg)	57(26)	50(23)	65(29)	58(26)	72(33)	65(29)
48"	Cat. No.	A356K2	AA356K2	A456K2	AA456K2	A556K2	AA556K2
(1220mm)	Price Each	*	*	*	*	*	*
Long	Wt. lbs. (kg)	63(29)	56(25)	71(32)	64(29)	79(36)	72(33)
60"	Cat. No.	A366K2	AA366K2	A466K2	AA466K2	A566K2	AA566K2
(1525mm)	Price Each	*	*	*	*	*	*
Long	Wt. lbs. (kg)	82(31)	75(34)	88(40)	81(37)	98(44)	91(41)
72”	Cat. No.	A376K2	AA376K2	A476K2	AA476K2	A576K2	AA576K2
(1825mm)	Price Each	*	*	*	*	*	*
Long	Wt. lbs. (kg)	94(43)	87(39)	98(44)	92(42)	120(54)	113(51)

5 Shelves, 74" (1880mm) Posts (74P)		Metroseal II^TM
		18" (455mm) Wide		21" (530mm) Wide		24" (610mm) Wide
		Starter	Add-OA	Starter	Add-OA	Starter	Add-OA
24"	Cat. No.	5A317K2	5AA317K2	5A417K2	5AA417K2	5A517K2	5AA517K2
(610mm)	Price Each	*	*	*	*	*	*
Long	Wt. lbs. (kg)	51(23)	43(20)	57(26)	48(22)	62(28)	53(24)
30"	Cat. No.	5A327K2	5AA327K2	5A427K2	5AA427K2	5A527K2	5AA527K2
(760mm)	Price Each	*	*	*	*	*	*
Long	Wt. lbs. (kg)	58(26)	50(23)	64(29)	56(25)	71(32)	62(28)
36"	Cat. No.	5A337K2	5AA337K2	5A437K2	5AA537K2	5A537K2	5AA537K2
(760mm)	Price Each	*	*	*	*	*	*
Long	Wt. lbs. (kg)	65(29)	57(26)	73(33)	65(29)	81(37)	73(33)
42"	Cat. No.	5A347K2	5AA347K2	5A447K2	5AA447K2	5A547K2	5AA547K2
(1060mm)	Price Each	*	*	*	*	*	*
Long	Wt. lbs. (kg)	70(32)	62(28)	81(37)	73(33)	89(40)	81(37)
48"	Cat. No.	5A357K2	5AA357K2	5A457K2	5AA457K2	5A557K2	5AA557K2
(1220mm)	Price Each	*	*	*	*	*	*
Long	Wt. lbs. (kg)	78(35)	70(32)	88(40)	80(36)	98(44)	90(41)
60"	Cat. No.	5A367K2	5AA367K2	5A467K2	5AA467K2	5A567K2	5AA567K2
(1525mm)	Price Each	*	*	*	*	*	*
Long	Wt. lbs. (kg)	102(46)	93(42)	109(49)	101(46)	122(55)	113(51)
72”	Cat. No.	5A377K2	5AA377K2	5A477K2	5AA477K2	5A577K2	5AA577K2
(1825mm)	Price Each	*	*	*	*	*	*
Long	Wt. lbs. (kg)	117(53)	108(49)	122(55)	113(51)	149(68)	141(64)

SUPER ERECTA CONVENIENCE PAK — 10.03
Super Erecta Convenience Pak provides a complete shelving unit in a single box. Convenience Pak shelving is the easy-to-order alternative to separate shelving components. Available in Super Erecta Brite, chrome and Metroseal. Pak includes 4 shelves, 4 split posts, split sleeves and leveling bolts.

Width/Length/Height		Approx. Pkd. Wt.		Cat. No. Super Erecta Brite	Price Each	Cat. No. Chrome	Price Each	Cat. No. Metroseal II	Price Each
(in.)	(mm)	(lbs.)	(kg)	Cat. No. Super Erecta Brite	Price Each	Cat. No. Chrome	Price Each	Cat. No. Metroseal II	Price Each
18x36x74½	455x910x1890	51	23	EZ1836BR-4	*	EZ1836NC-4	*	EZ1836NK2-4	*
18x48x74½	455x1220x1890	63	28.5	EZ1848BR-4	*	EZ1848NC-4	*	EZ1848NK2-4	*
18x60x74½	455x1525x1890	82	37	EZ1860BR-4	*	EZ1860NC-4	*	EZ1860NK2-4	*
24x36x74½	610x910x1890	66	30	EZ2436BR-4	*	EZ2436NC-4	*	EZ2436NK2-4	*
24x48x74½	610x1220x1890	76	34.5	EZ2448BR-4	*	EZ2448NC-4	*	EZ2448NK2-4	*
24x60x74½	610x1525x1890	102	46	EZ2460BR-4	*	EZ2460NC-4	*	EZ2460NK2-4	*

DROP MAT SHELVING — 10.04
For the storage of small to tall items, Drop Mat shelving can increase storage capacity by as much as 20%. Built-in shelf ledge provides security, preventing contents from falling off shelf. Each shelf holds up to 250 pounds (113 kg).

Width/Length		Approx. Pkd. Wt.		Cat. No. Super Erecta Brite	Price Each	Cat. No. Chrome	Price Each	Cat. No. Black	Price Each
(in.)	(mm)	(lbs.)	(kg)	Cat. No. Super Erecta Brite	Price Each	Cat. No. Chrome	Price Each	Cat. No. Black	Price Each
14x36	355x910	7.25	3.2	HDMI436BR	*	HDM1436NC	*	HDM1436BL	*
14x48	355x1220	9.75	4.3	HDM1448BR	*	HDM1448NC	*	HDM1448BL	*
18x36	455x910	8.5	3.8	HDMI836BR	*	HDMI836NC	*	HDM1836BL	*
18x48	455x1220	11.25	5	HDM1848BR	*	HDM1848NC	*	HDMI848BL	*
21x36	530x910	10.75	4.8	HDM2136BR	*	HDM2136NC	*	HDM2136BL	*
21x48	530x1220	13.25	5.9	HDM2I48BR	*	HDM2148NC	*	HDM2148BL	*
24x24	610x610	8.5	3.8	HDM2424BR	*	HDM2424NC	*	HDM2424BL	*
24x36	610x910	12.25	5.5	HDM2436BR	*	HDM2436NC	*	HDM2436BL	*
24x48	610x1220	15.25	6.8	HDM2448BR	*	HDM2448NC	*	HDM2448BL	*

Width/Length		Approx. Pkd. Wt.		Cat. No. White	Price Each	Cat. No. Smoked Glass	Price Each	Cat. No. Designer Colors	Price Each
(in.)	(mm)	(lbs.)	(kg)	Cat. No. White	Price Each	Cat. No. Smoked Glass	Price Each	Cat. No. Designer Colors	Price Each
14x36	355x910	7.25	3.2	HDM1436W	*	HDM1436-DSG	*	HDM1436-D	*
14x48	355x1220	9.75	4.3	HDM1448W	*	HDM1448-DSG	*	HDM1448-D	*
18x36	455x910	8.5	3.8	HDM1836W	*	HDM1836-DSG	*	HDM1836-D	*
18x48	455x1220	11.25	5	HDMI848W	*	HDM1848-DSG	*	HDM1848-D	*
21x36	530x910	10.75	4.8	HDM2136W	*	HDM2136-DSG	*	HDM2136-D	*
21x48	530x1220	13.25	5.9	HDM2I48W	*	HDM214O-DSG	*	HDM2148-D	*
24x24	610x610	8.5	3.8	HDM2424W	*	HDM2424-DSG	*		*
24x36	610x910	12.25	5.5	HDM2436W	*	HDM2436-DSG	*	HDM2436-D	*
24x48	610x1220	15.25	6.8	HDM2448W	*	HDM2448-DSG	*	HDM2448-D	*

SNAP-ON DIVIDERS FOR DROP MAT SHELVES — 10.04
Organize your shelves with these 8” (203mm) high, snap-in place dividers.

Fits Shelf Width		Approx. Pkd. Wt.		Cat. No. Chrome	Cat .No. Black	Cat. No. White	Cat. No. Smoked Glass	Price Each	Cat. No. Designer Colors	Price Each
(in.)	(mm)	(lbs.)	(kg)	Cat. No. Chrome	Cat .No. Black	Cat. No. White	Cat. No. Smoked Glass	Price Each	Cat. No. Designer Colors	Price Each
18	455	2.5	1.1	HD18C	HD18BL	HD18W	HD18-DSG	*	HD18-D	*
24	610	3.5	1.6	HD24C	HD24BL	HD24W	HD24-DSG	*	HD24-D	*

* PLEASE CALL FOR CURRENT PRICES:

(301) 231-7272

(800) 827-7880

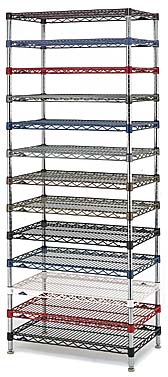

DESIGNER SHELVING — 10.14
Available in a wide spectrum of epoxy-coated finishes. Three standard and ten special colors plus almost any custom color can be ordered to meet your special needs.

Designer shelving finishes are not recommended for cooler or freezer applications. Specify Metroseal II for these applications.

Width/Length		Approx. Pkd. Wt.		STANDARD COLORS
(in.)	(mm)	(lbs.)	(kg)	Cat. No. Black	Cat. No. Smoked Glass	Cat. No. White	Price Each	Cat. No. Designer Colors+	Price Each
14x24	355x610	6	2.7	1424NBL	1424N-DSG	1424NW	43.00	1424N-D	*
14x30	355x760	7	3.1	1430NBL	1430N-DSG	1430NW	45.00	1430N-D	*
14x36	355x910	8	3.6	1436NBL	1436N-DSG	1436NW	47.00	1436N-D	*
14x42	355x1060	9½	4.2	1442NBL	1442N-DSG	1442NW	54.00	1442N-D	*
14x48	355x1220	10½	4.7	1448NBL	1448N-DSG	1448NW	56.00	1448N-D	*
14x60	355x1525	14	6.3	1460NBL	1460N-DSG	1460NW	63.00	1460N-D	*
14x72	355x1825	17	7.6	1472NBL	1472N-DSG	1472NW	73.00	1472N-D	*
18x18	455x455	6	2.7	1818NBL	1818N-DSG	1818NW	46.00	1818N-D	*
18x24	455x610	7	3.1	1824NBL	1824N-DSG	1824NW	47.00	1824N-D	*
18x30	455x760	8	3.6	1830NBL	1830N-DSG	1830NW	49.00	1830N-D	*
18x36	455x910	9½	4.2	1836NBL	1836N-DSG	1836NW	51.00	1836N-D	*
18x42	455x1060	11	4.9	1842NBL	1842N-DSG	1842NW	59.00	1842N-D	*
18x48	455x1220	12	5.4	1848NBL	1848N-DSG	1848NW	61.00	1848N-D	*
18x54	455x1370	14½	6.5	1854NBL	1854N-DSG	1854NW	69.00	1854N-D	*
18x60	455x1525	17	7.6	186ONBL	1860N-DSG	1860NW	71.00	1860N-D	*
18x72	455x1825	20	9	1872NBL	1872N-DSG	1872NW	85.00	1872N-D	*
21x24	530x610	8	3.6	2124NBL	2124N-DSG	2124NW	56.00	2124N-D	*
21x30	530x760	9	4	2130NBL	2130N-DSG	2130NW	58.00	2130N-D	*
21x36	530x910	11	4.9	2136NBL	2136N-DSG	2136NW	60.00	2136N-D	*
21x42	530x1060	12	5.4	2142NBL	2142N-DSG	2142NW	67.00	2142N-D	*
21x48	530x1220	14	6.3	2148N5L	2148N-DSG	2148NW	69.00	2148N-D	*
21x54	530x1370	16	7.2	2154NBL	2154N-DSG	2154NW	79.00	2154N-D	*
21x60	530x1525	18	8.1	2160NBL	2160N-DSG	2160NW	81.00	2160N-D	*
21x42	530x1825	24	10.8	2172NBL	2172N-DSG	2172NW	98.00	2172N-D	*
24x24	610x610	9	4	2424NBL	2424N-DSG	2424NW	59.00	2424N-D	*
24x30	610x760	11	4.9	2430NBL	2430N-DSG	2430NW	61.00	2430N-D	*
24x36	610x910	13	5.8	2436NBL	2436N-DSG	2436NW	63.00	2436N-D	*
24x42	610x1060	15	6.7	2442NBL	2442N-DSG	2442NW	74.00	2442N-D	*
24x48	610x1220	16	7.2	2448NBL	2448N-DSG	2448NW	76.00	2448N-D	*
24x54	610x1370	19	8.5	2454NBL	2454N-DSG	2454NW	88.00	2454N-D	*
24x60	610x1525	21	9.4	2460NBL	2460N-DSG	2460NW	90.00	2460N-D	*
24x72	610x1825	26	11.7	2472NBL	2472N-DSG	2472NW	107.00	2472N-D	*

NOTE: White shelving and accessories include white split sleeves and post caps. All others come with black.
NOTE: shelving is not cart-washable, but can be wiped down with a mild detergent.
NOTE: The actual length of the shelves is 1/8” (3.2mm) shorter than the nominal dimension shown.
NOTE: With 14” (355mm) shelving, foot plates must be used on freestanding units; on mobile units, maximum post height is 54" (1370mm). It is not recommended louse 14” (355mm) shelving with posts higher than 74" (1880mm).
NOTE: Designer shelving is not NSF listed.

+To order a Designer Color, add the appropriate color suffix to the desired catalog numbers found in the Designer Colors column below (example: 18” x 36” [455 x 910mm] Hunter Green Shelf = 1836N-DHG).

BM - Black Matte	SH - Silver Hammertone	TE - Teal	F - Flame	SP - Sapphire
WN - Wine	CH - Copper Hammertone	RB - Ruby	CG - Cloud Gray	HG - Hunter Green

POSTS FOR DESIGNER SHELVING

Height		Approx. Pkd. Wt.		Cat. No. Black	Cat. No. Smoked Glass	Cat. No. White	Price Each	Cat. No. Designer Colors+	Price Each
(in.)	(mm)	(lbs.)	(kg)	Cat. No. Black	Cat. No. Smoked Glass	Cat. No. White	Price Each	Cat. No. Designer Colors+	Price Each
7 1/2	191	½	0.3	7PBL	7P-DSG		*	7P-D	*
14½	370	1	0.5	13PBL	13P-DSG	13PW	*	13P-D	*
34½	875	2	0.9	33PBL	33P-DSG	337W	*	33P-D	*
54 9/16	1385	3	1.4	54PBL	54P-DSG	54PW	*	54P-D	*
62 9/16	1590	3½	1.6	63PBL	63P-DSG	63PW	*	63P-D	*
74 5/8	1895	4	1.8	74PBL	74P-DSG	74PW	*	74P-D	*
86 5/8	2200	5	2.3	86PBL	86P-DSG	86PW	*	86P-D	*
Note: Special length posts are available.

* PLEASE CALL FOR CURRENT PRICES:

(301) 231-7272

(800) 827-7880

back to Wire Shelving
