STOCK GATES & DOORS

HINGED DOORS
  • 3' or 4' wide by 7' -3 1/4" high opening.
  • Transom panel sized to match partition height.
  • Three 4" x 4" 10 gauge tight pin hinges.
  • Padlock lugs standard, cylinder locks available.
  • Complete with two door posts and hardware.
  • Universal construction, works for left or right hand, inside or outside swing.
DUTCH DOORS
same as above except:
  • Two separate operating door leafs
  • Bottom leaf locks with padlock, cylinder lock available.
  • Top leaf locks to bottom with spring bolt.
  • 10 gauge shelf, 18" deep x door width fixed to bottom leaf.
  • Must specify hand and swing of door

DOUBLE HINGED DOORS
  • 6' or 8' wide by 7'-3 1/4" high opening.
  • Inactive leaf secured by cane bolt (base) and chain bolt (top).
  • Padlock lugs standard, cylinder lock available.
  • Complete with two door posts and all hardware.
  • Transom panel sized to match partition height.
  • Custom size and no overhead obstruction doors available.
SLIDING DOORS
  • 3', 4', 5', 6', 8', or 10' wide doors in stock.
  • Full height openings of 8' 0" or 10' 0".
  • Padlock lugs standard, cylinder lock available.
  • Complete with two door posts, two 4-wheel trolley trucks, 16 gauge track and all hardware.
  • Universal construction, works for left or right hand, inside or outside.
  • Custom size sliding doors are available.
STOCK SIZE DOORS
Part #
Opening
Width x Height
Transom
Height
Weight
(lbs)
HD-37-8
3'-0" x 7'-3 1/4"
1'-0"
115
HD-47-8
4'-0" x 7'-3 1/4"
1'-0"
128
HD-37-10
3'-0" x 7'-3 1/4"
3'-0"
132
HD-47-10
4'-0" x 7'-3 1/4"
3'-0"
149
SD-38-8
3'-0" x 8'-0 1/4"
Track (3")
136
SD-48-8
4'-0" x 8'-0 1/4"
Track
149
SD-58-8
5'-0" x 8'-0 1/4"
Track
159
SD-68-8
6'-0" x 8'-0 1/4"
Track
219
SD-88-8
8'-0" x 8'-0 1/4"
Track
255
SD-108-8
10'-0" x 8'-0 1/4"
Track
315
SD-410-10
4'-0" x 10'-0 1/4"
Track
185
SD-510-10
5'-0" x 10'-0 1/4"
Track
204
SD-610-10
6'-0" x 10'-0 1/4"
Track
262
SD-810-10
8'-0" x 10'-0 1/4"
Track
307
SD-1010-10
10'-0" x 10'-0 1/4"
Track
375
NON-STOCKED GATES & DOORS
If the size or type of gate needed for your application is not listed above, feel free to contact us about building a special one for you. We have years of experience satisfying the most demanding requirements, and have many standard designs for special applications on file. Some of the special gates we developed are shown below. Please call give us a chance to help with your special situation.

TUNNEL DOORS
  • Designed for no overhead obstruction.
  • Leading edge of door rolls on floor casters.
  • Rear of door hangs from door track.
  • All sizes made to order.
  • Ideal for high traffic areas, and where overhead crane access is necessary.

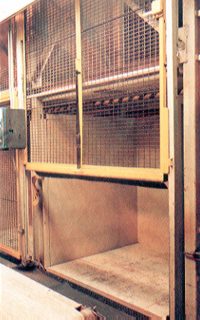

VERTICAL RISE GATES
  • Sized to match customer specification.
  • Gate slides on ball-type casters.
  • Counter balanced, pneumatic, or electric operated gates available.
  • Ideal for use with vertical lifts where floor space is limited. Can be integrated with automated storage systems.
